Project Details

Immersive Tower by DIFC, is a state-of-the-art high-rise tower with a modern architectural style, standing at approximately 180 m high. The tower serves as a premium office building complemented with high-end restaurants and various amenities.

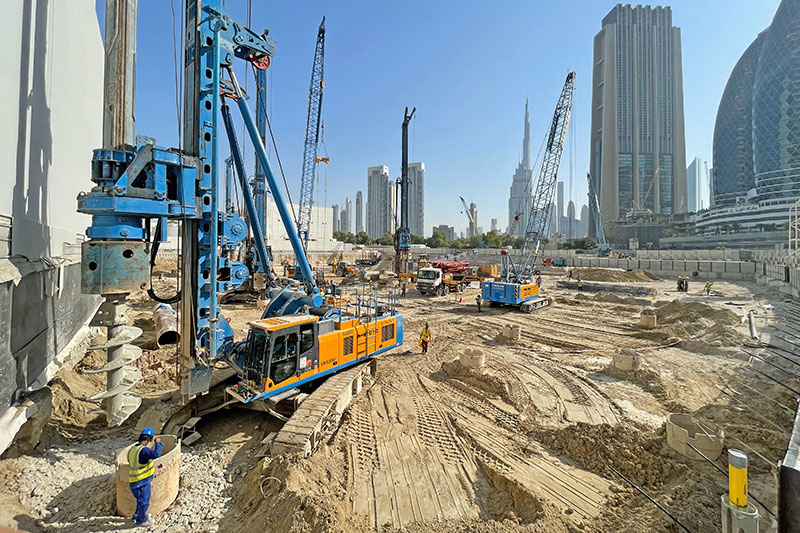

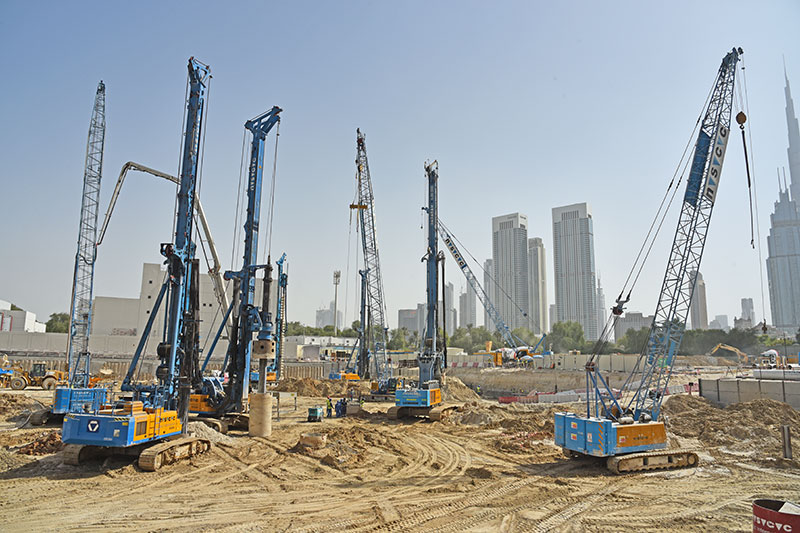

Large Diameter Rotary Bored Piles
1000 mm dia. piles : 142 nos., drilled to depths up to 24 m
1500 mm dia. piles : 167 nos., drilled to depths up to 24 m
Total length drilled : 8,280 LM

Secant Piled Wall
Perimeter : 287 m
Retained height : 20.5 m
780 mm dia. piles : 454 nos. @ 630 mm c/c spacing
Total length drilled : 8,328 LM

Concrete volume : 13,762 m³
Reinforcement steel : 1,290 tons
Excavation volume : 139,107 m³

Ground anchors : 33 nos.
Struts : 14 nos. of 863.6 mm dia. pipes
